Solar Panel Rigid Solar Panel 25 Year Photovoltaic Monocrystalline Cell 12V Battery Charge

SPECIFICATIONS

Brand Name: JINGYANGPV

Certification: CE

Flexible Solar Panel: Yes

Foldable Solar Panel: No

Hign-concerned Chemical: Urethane (Ethyl carbamate)

Material: Monocrystalline Silicon

Max. Power: 100w 120W 140w 160w 200w

Model Number: different type

Module Efficien: 24%

Nominal Capacity: 100w 120W 140w 160w 200w

Number of Cells: 33PCS

Number of Panels: 1

Origin: Mainland China

Rigid SOLAR PANEL: SOLAR PANEL 12V

SOLAR PANEL: MONO SOLAR CELL

Size: different side

Type: Solar Panel

is_customized: Yes

25-Year Warranty

Backed by a 25-year warranty, this solar panel offers peace of mind and assurance of quality.

Easy Installation

This solar panel is easy to install, making it a convenient choice for both residential and commercial use.

Robust Rigid Design

The rigid solar panel design provides durability and longevity, ensuring reliable performance over time.

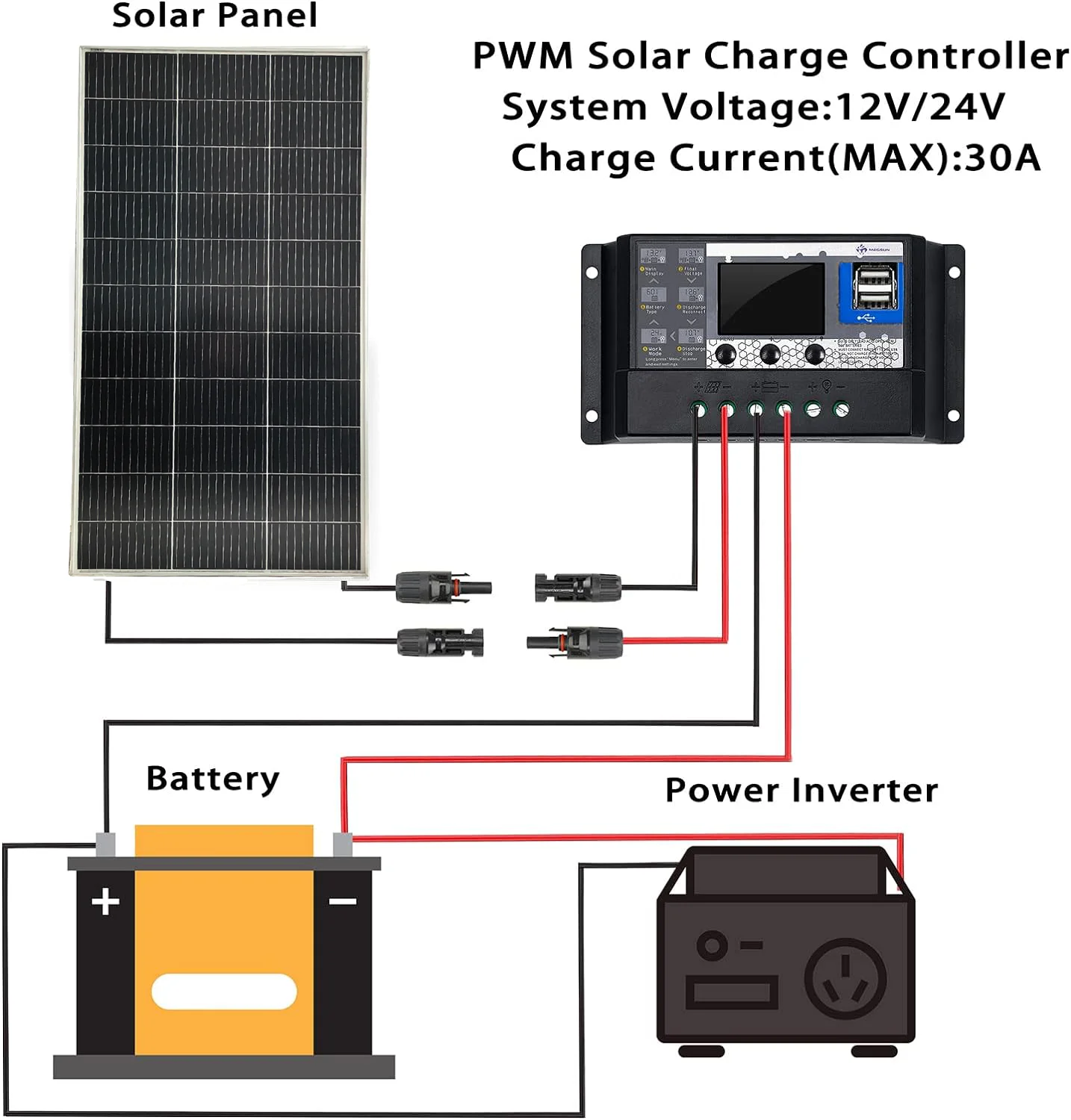

12V Battery Charge Compatibility

Designed to efficiently charge 12V batteries, making it ideal for off-grid power solutions.

High Efficiency Monocrystalline Cell

Equipped with advanced monocrystalline cells, this solar panel ensures high efficiency and optimal energy conversion.

Advantages of JINGYANG Tempered solar panels:

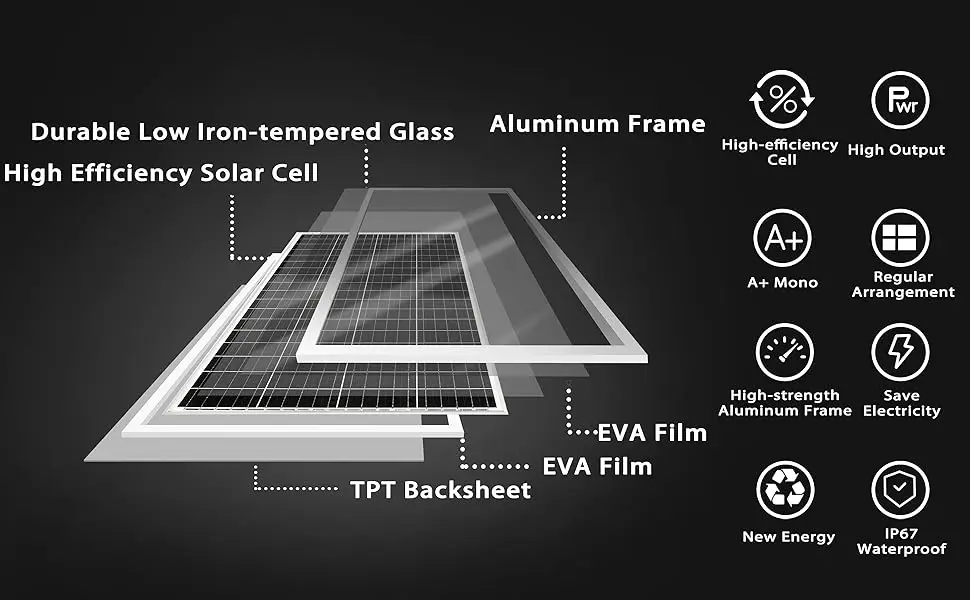

Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

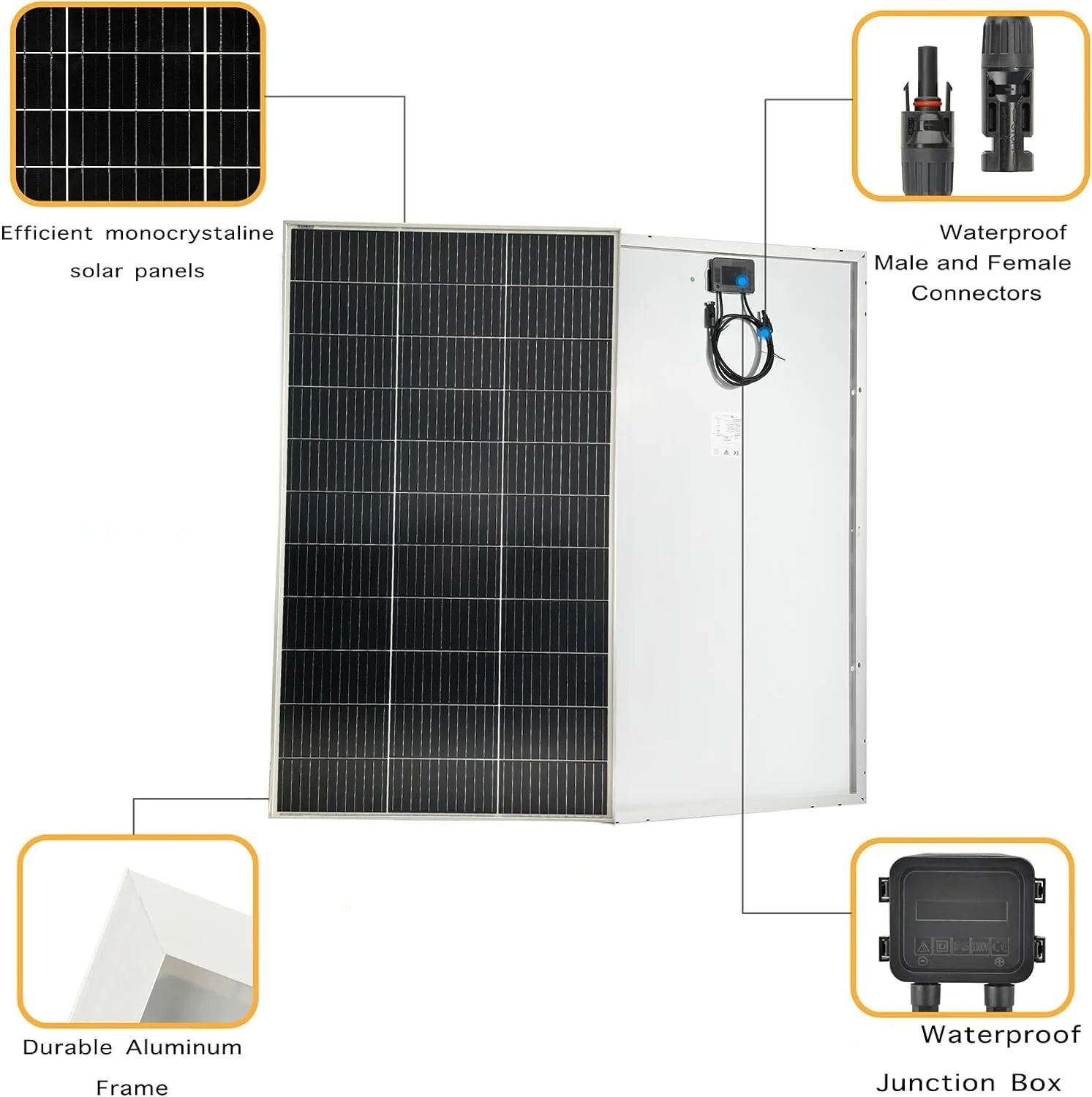

The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

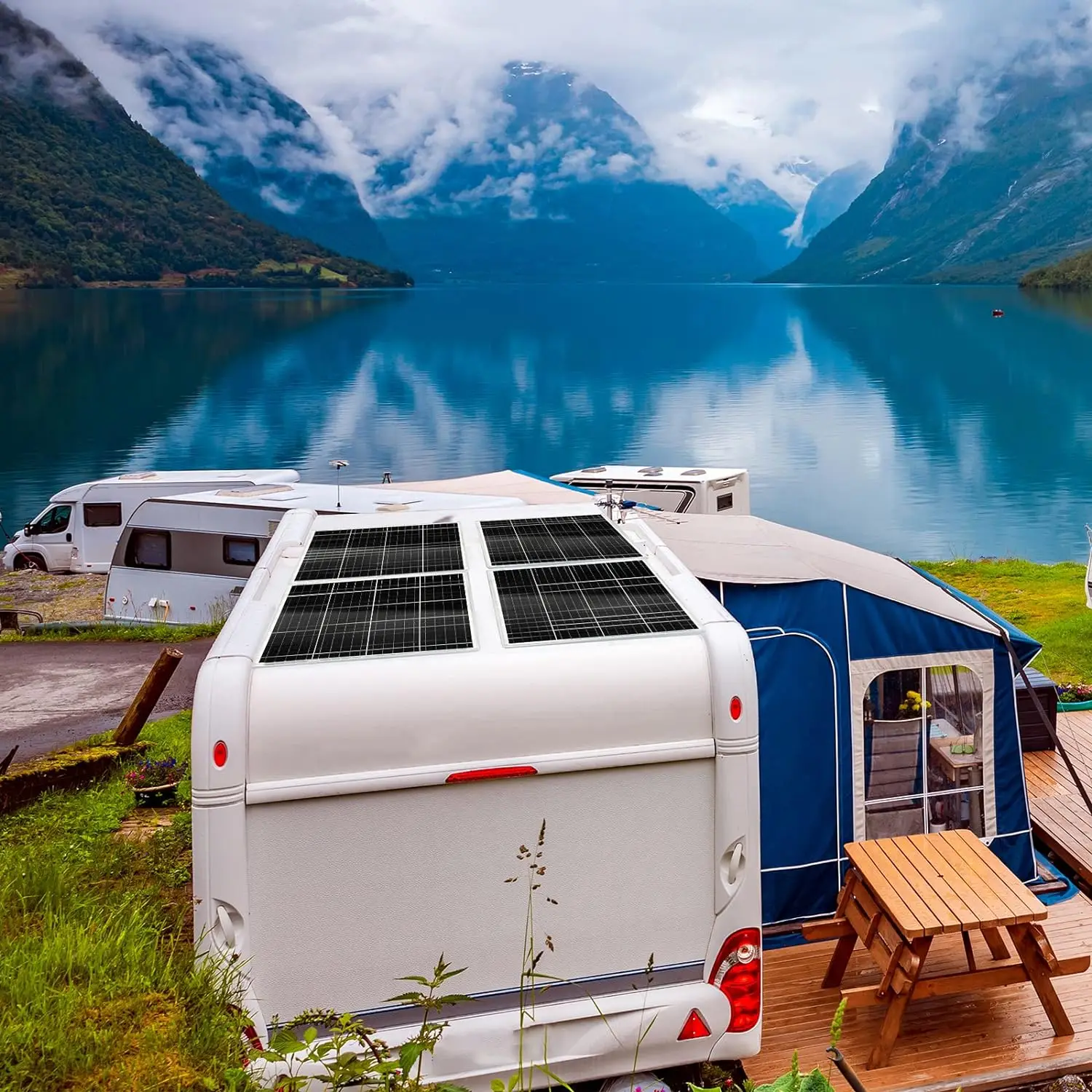

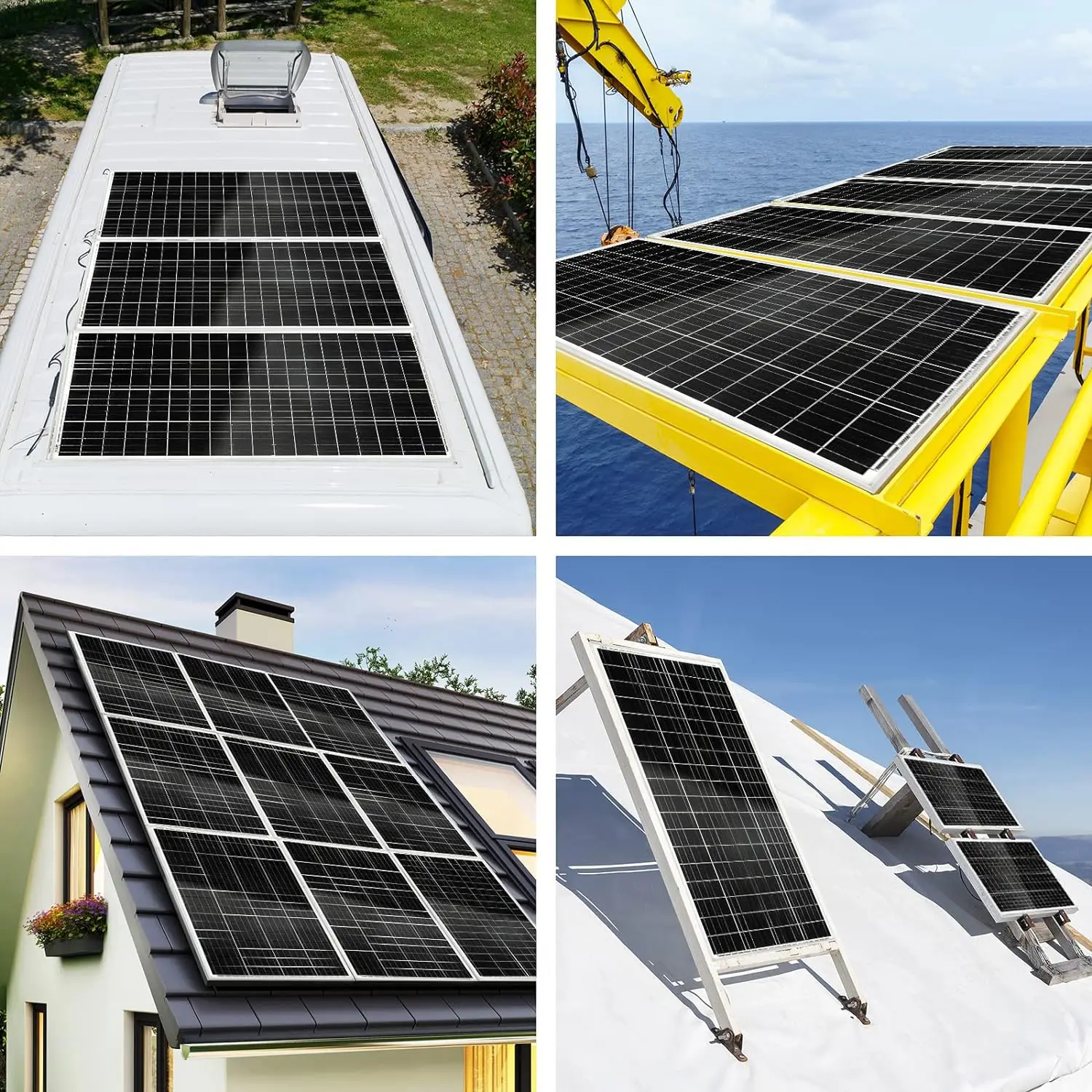

With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment.

Product description:

The surface is tempered glass, waterproof, snowproof, resistant to small hail.

Diodes are pre-installed in junction box and a pair of 24-inches cables with connectors comes with the panel automatically

The back has 8 drill hole that can be quickly installed.

100W SOLAR PANEL:  1：

Model:CNMYPV100(32)M166
Material:Monocrystalline silicon
Maximum Power(Pmax):100W
Maximum Power Voltage(Vmp):18..9V
Maximum Power Current (Imp): 5.35A
Open-Circuit Voltage (Voc): 22.7V
Short-Circuit Current (Isc):6.04A

Solar Cell: Newly 166MM*166MM Monocrystalline
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:10A
Dimension:970mm*530mm*30mm
Package Weight:5.5kg
(The above data is based on the laboratory standard test environment)

120W SOLAR PANEL ：

Model:CNMYPV120(36)M166
Material:Monocrystalline silicon
Maximum Power(Pmax):120W
Maximum Power Voltage(Vmp):21.5V
Maximum Power Current (Imp): 5.58A
Open-Circuit Voltage (Voc): 25.4V
Short-Circuit Current (Isc):6.07A

Solar Cell: Newly 166MM*166MM Monocrystalline
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:10A
Dimension:1050mm*530mm*30mm
Package Weight:6.8kg
(The above data is based on the laboratory standard test environment)

140W SOLAR PANEL ：

Model:CNMYPV140(72)M158
Material:Monocrystalline silicon
Maximum Power(Pmax):140W
Maximum Power Voltage(Vmp):21.5V
Maximum Power Current (Imp): 6.65A
Open-Circuit Voltage (Voc): 25.4V
Short-Circuit Current (Isc):6.95A

Solar Cell: Newly 210MM*84MM Monocrystalline
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:10A
Dimension:990mm*670mm*30mm
Package Weight: 7.4kg
(The above data is based on the laboratory standard test environment)

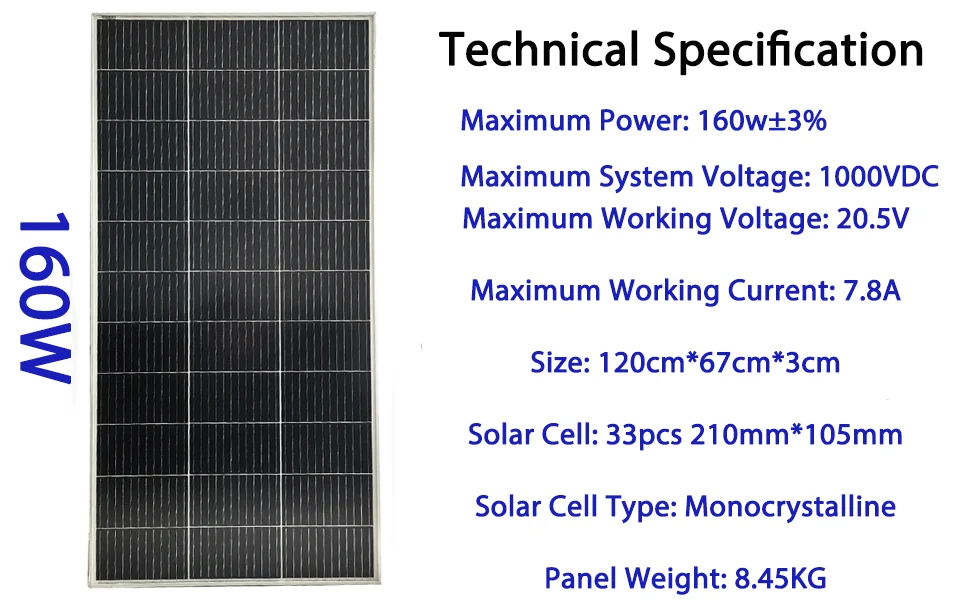

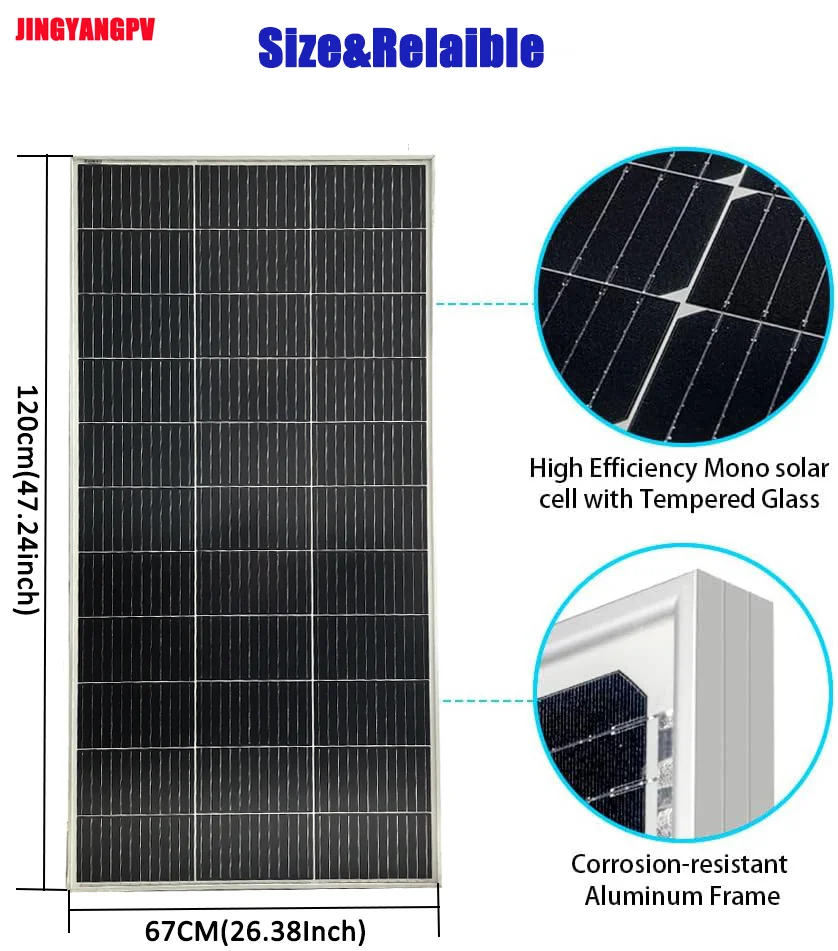

160W SOLAR PANEL ：

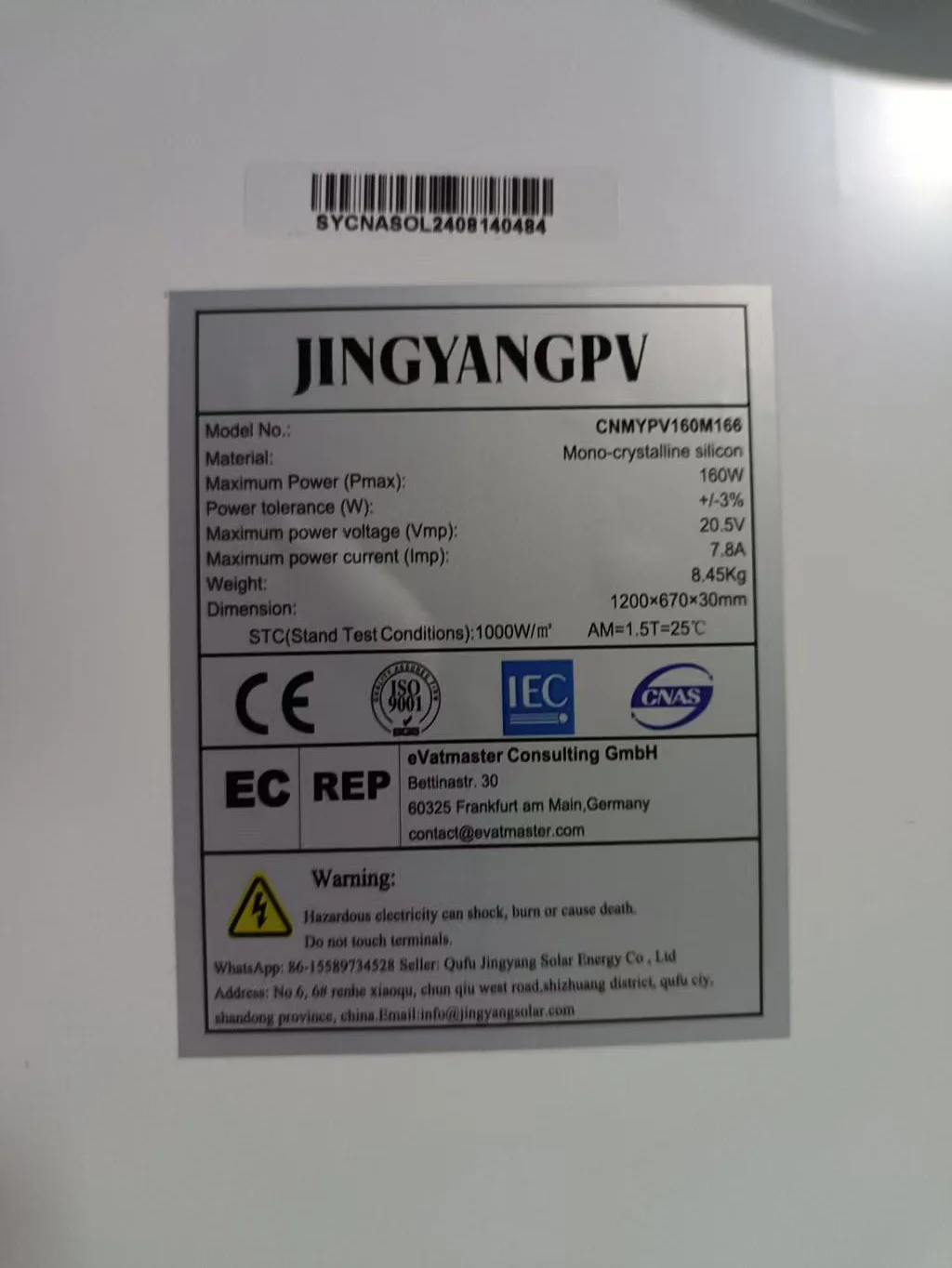

Model:CNMYPV160M166
Material:Monocrystalline silicon
Maximum Power(Pmax):160W
Maximum Power Voltage(Vmp):18.5V
Maximum Power Current (Imp): 8.64A
Open-Circuit Voltage (Voc): 21.4V
Short-Circuit Current (Isc):9.4A

Solar Cell: Newly 33PCS 210mm*105mm Monocrystalline
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:10A
Dimension:1200mm*670mm*30mm
Package Weight: 8.5kg
(The above data is based on the laboratory standard test environment)

5 Years Warranty, 25 Year Lifetime

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this poin

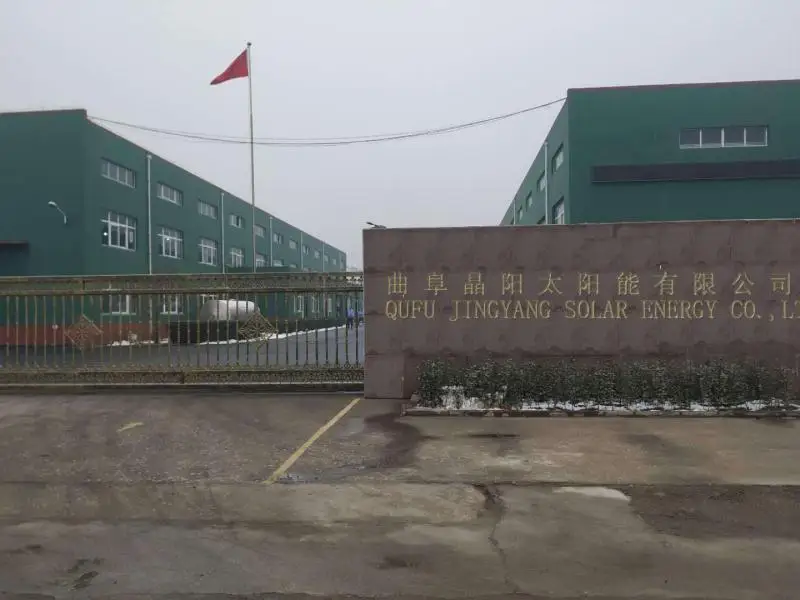

Jingyang Solar Energy is an international high-tech and growing group company, established in 2009, with 10 years’ experience of solar modules manufacturing and PV power generation systems supplying. Our factory covers an area of 10,000 square meters, employing 150 peoples, with an annual production of 500MW, about USD50 million of annual production value.
